Fatal Rose Posted February 2, 2008 Share Posted February 2, 2008 Nice, you can play VF4 on it. Link to comment Share on other sites More sharing options...

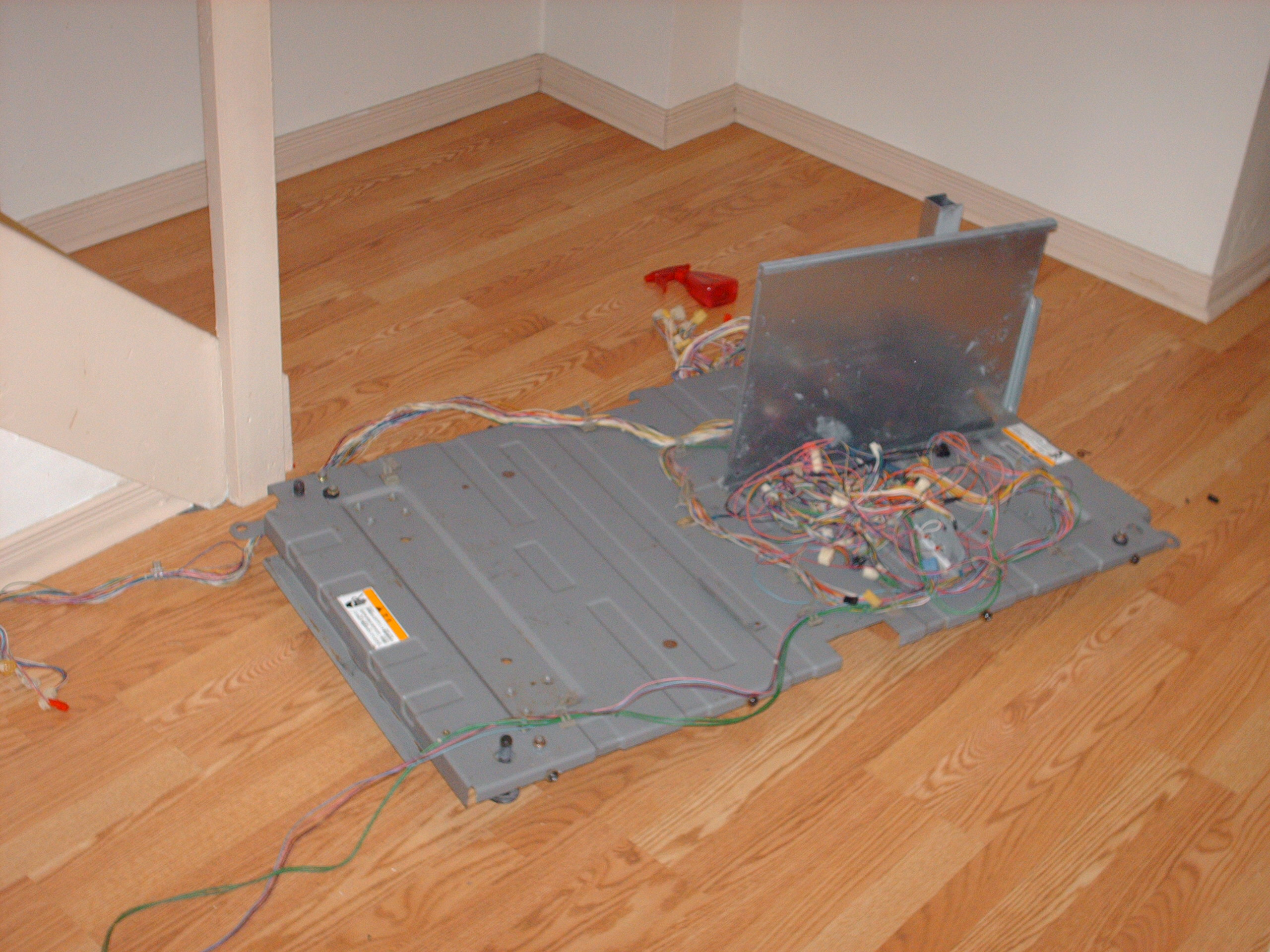

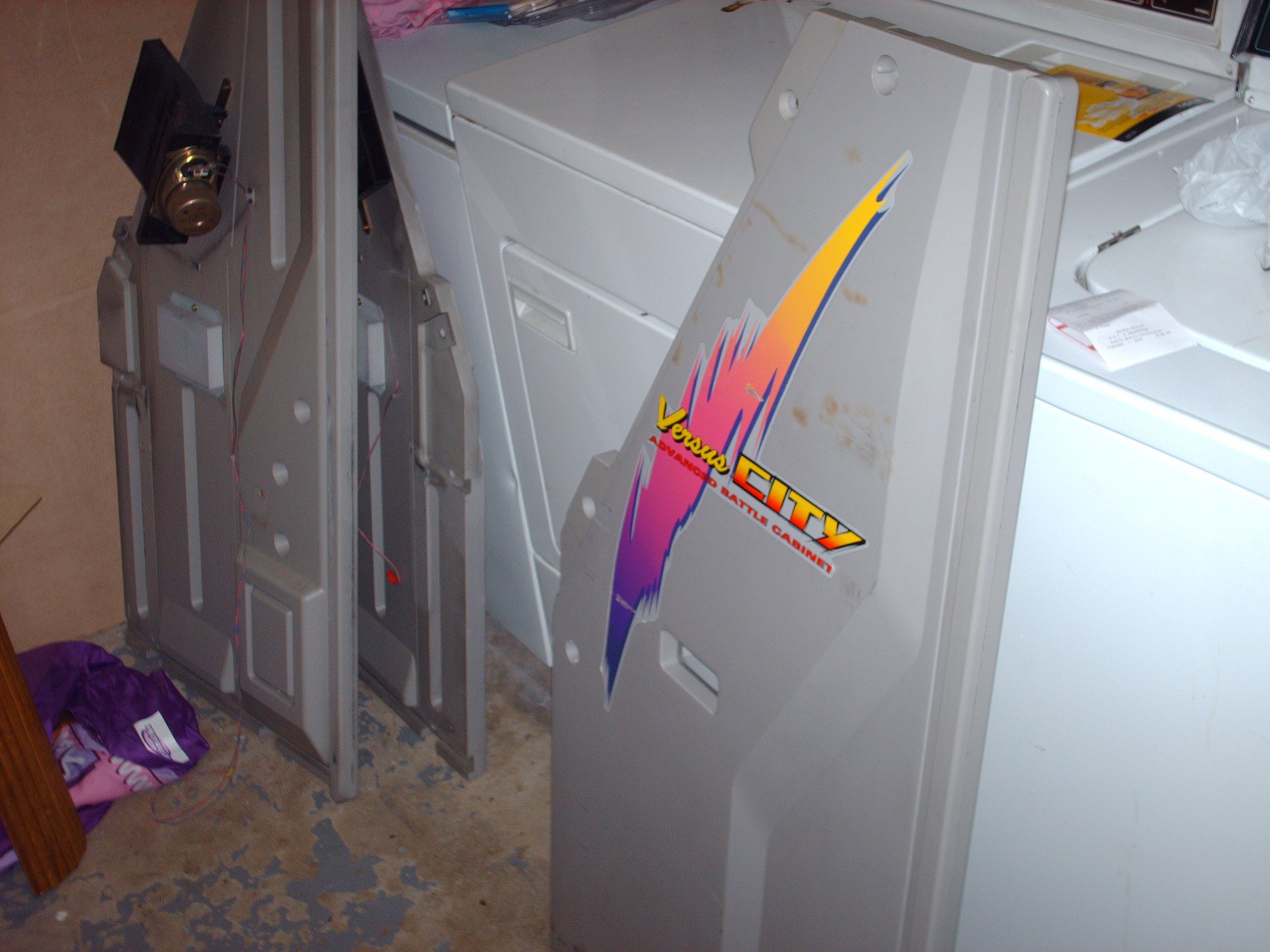

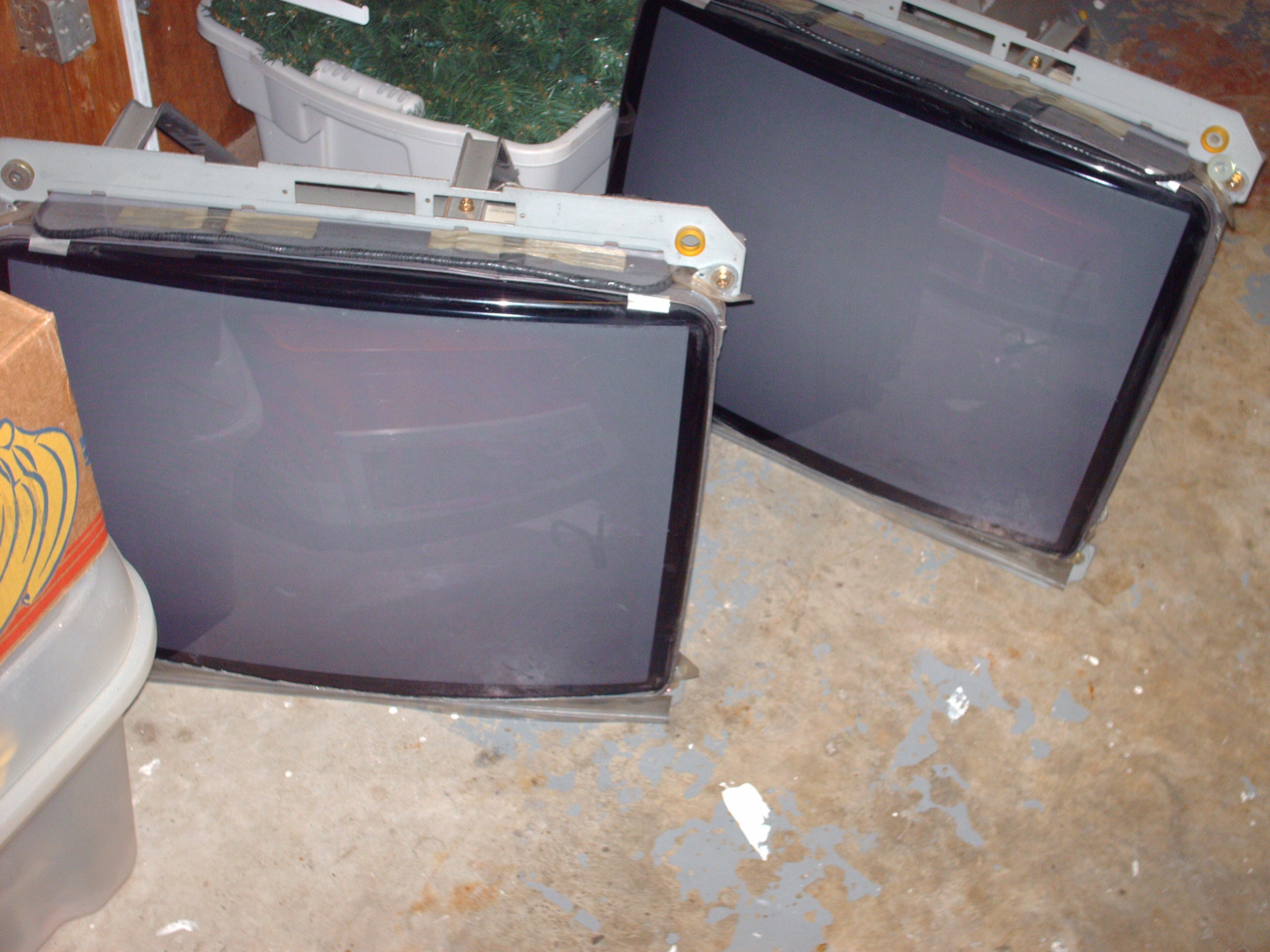

ken_cinder Posted February 2, 2008 Author Share Posted February 2, 2008 I ripped the cabinet apart for ease of getting it inside. Figured what the hell, it needs a good cleaning anyway.Witness the Frankenstein! Link to comment Share on other sites More sharing options...

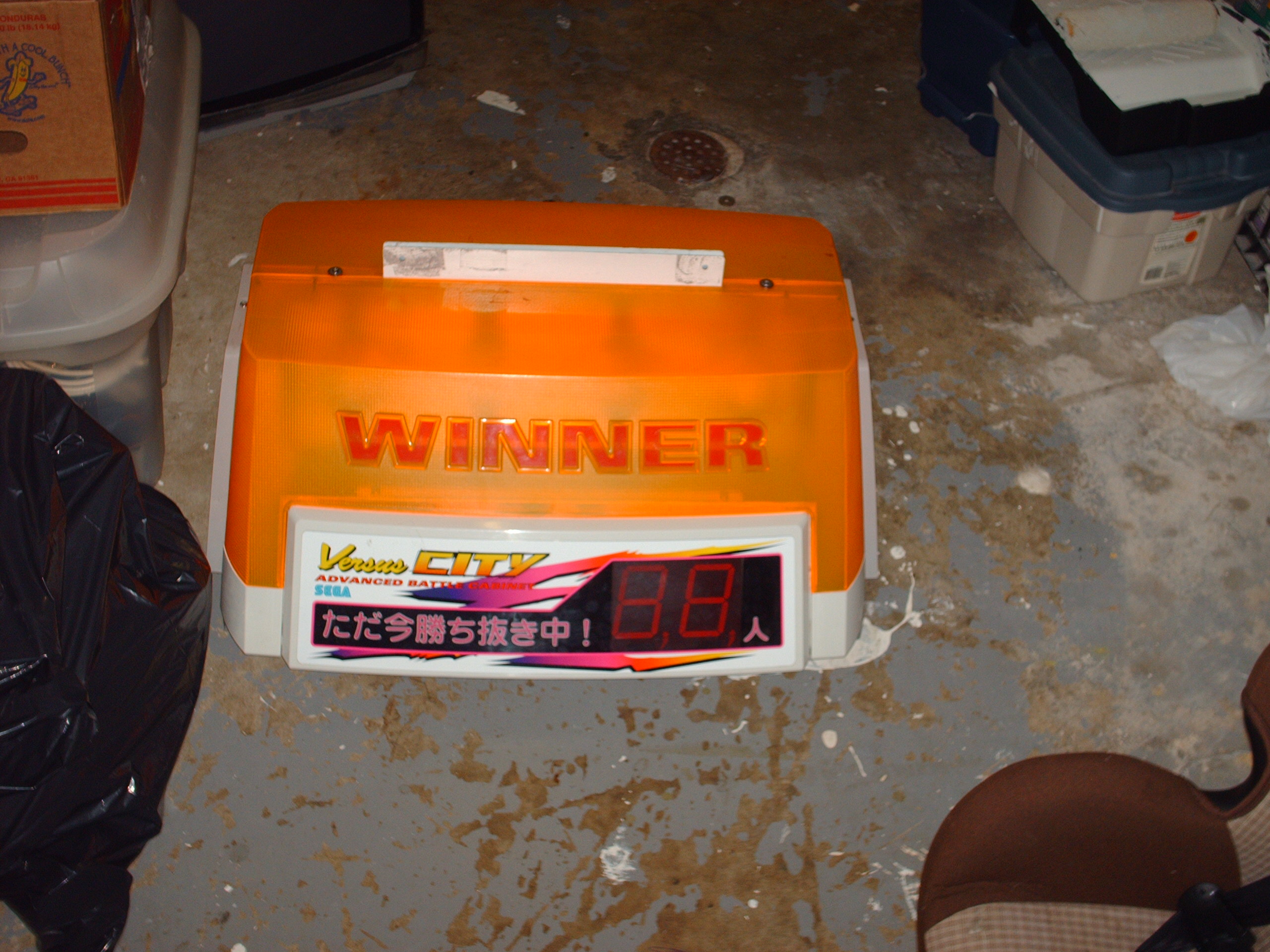

ken_cinder Posted February 3, 2008 Author Share Posted February 3, 2008 It's alive! Well mostly, theres only AV hooked up and the scoreboard I only tested for AC continuity. But heres pics! Game running is my Taito F3 hardware with Puzzle Bobble 2. http://img502.imageshack.us/my.php?image=hpim1189hf6.jpg http://img141.imageshack.us/my.php?image=hpim1192vg6.jpg http://img218.imageshack.us/my.php?image=hpim1194id6.jpg Link to comment Share on other sites More sharing options...
Jitway Posted February 3, 2008 Share Posted February 3, 2008 Good job there. Looks like you are having a blast with it. Too bad you live to far from me or I would pay you a visit when you get it all done to have a round or 2 with ya and a game as well. Link to comment Share on other sites More sharing options...
solidius23 Posted February 3, 2008 Share Posted February 3, 2008 nice work cinder Link to comment Share on other sites More sharing options...
ken_cinder Posted February 4, 2008 Author Share Posted February 4, 2008 Ok I gutted the entire wiring, it just wasn't going to work as it was custom. I kept it for all the connectors though. ANother pic, wife playing finally. Only thing not wired up is 2P controls, coin door and service switches (Though those are built right into F3 motherboard) http://img408.imageshack.us/img408/2866/hpim1195mu9.jpg Link to comment Share on other sites More sharing options...
ken_cinder Posted February 7, 2008 Author Share Posted February 7, 2008 Finally all done. Tore the existing wiring out, reused the nice molex connectors etcReplaced the sticks and buttons (Wow Sanwa stuff sucks, not know why so popular. Buttons too shallow, sticks FAR too sensitive) Here it is! Save for cosmetic rework (I'm going to Krylon Fusion it red and black in the summer). Link to comment Share on other sites More sharing options...
Shoma Posted February 7, 2008 Share Posted February 7, 2008 (edited) i sure hope ur good enough to enter arcade tourneys....DONt WASTE UR LIFE JUS PLAYIN DAT THING!!!REACH 4 DA TOP!!!! TRAIN!!!!!!! Edited February 7, 2008 by Shoma Link to comment Share on other sites More sharing options...
